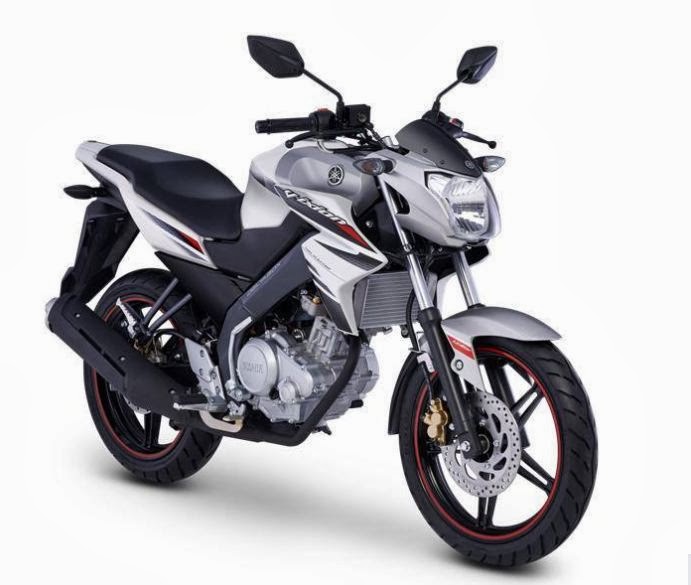

2014 Yamaha New Vixion with a 150cc engine, powered by Injection engine, liquid-cooled, and 5-speed gear, New Vixion 2014 with a power of 16.59 PS at 8500 rpm engine rev. This is the color of choice for 2014 Yamaha New Vixion . on sale for the first time in the Asian market
Yamaha New Vixion Specification
Engine type: 4 Step, 4 Valve SOHC - Fuel Injection, Liquid Cooled
Number / Position Cylinders: Single Cylinder / Vertical
Cylinder Volume: 149.8 cc
Bore x Stroke: 57.0 x 58.7 mm
Compression Ratio: 10.40: 1
Maximum power: 11.1 kW / 8500 rpm
Maximum torque: 13.1 Nm / 7500 rpm
Starter System: Electric Starter and Kick Starter
Lubrication system: Wet
Engine Oil Capacity: Total: 1.15 Liter / Replacement Periodical: 0.95 Liter
Fuel system: AC 28 -1 body Throtlle
Clutch Type: Wet, Manual Clutch, Multiplat
Transmission type: Return, 5 Speed
Transmission Operation Pattern: 1 - N - 2 - 3 - 4 - 5
Chassis
Frame Type: Pressed Backbone (deltabox)
Suspension Front: Telescopic
Rear Suspension: Swing Arm, Suspension Link Monocross
Tires Front: 2.75-17 41P
Rear tire: 90/90 - 17M / C 49P
Brakes Front: Disc
Rear Brakes: Drum
Electric Specification New Yamaha Vixion
Ignition system: T.C.I. / Transistorized Ignition Coil (Digital)
Battery: YTZ4V-MF (MF Battery 12V 3 Ah)
Busi: CR8E (NGK) / U24ESR-N (DENSO)
Specifications Dimensions
L x W x H: 2,000 x 705 mm x 1,035 mm
Wheelbase: 1,282 mm
Lowest distance to the Land: 167 mm
Seat Height: 790 mm
Fill Weight: 125 kg
Petrol tank capacity: 12 liters
